STE88N65M5 Datasheet - STMicroelectronics

STE88N65M5-STMicroelectronics.pdf

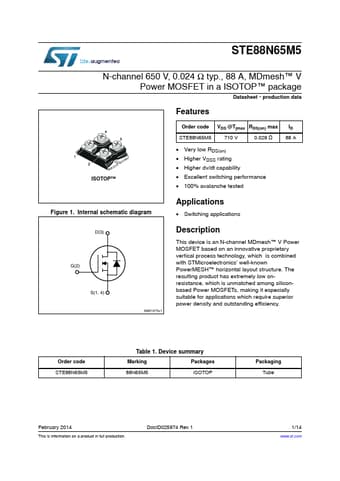

Preview of STE88N65M5 PDF
STE88N65M5 Datasheet Preview Page 2 STE88N65M5 Datasheet Preview Page 3

Datasheet Details

Part number:

STE88N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

0.95 MB

Description:

N-channel power mosfet.

STE88N65M5, N-channel Power MOSFET

This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

The resulting product has extremely low onresistance, which is unmatched among siliconbased

STE88N65M5 Features

* ISOTOPTM Order code VDS @Tjmax RDS(on) max STE88N65M5 710 V 0.029 Ω ID 88 A

* Very low RDS(on)

* Higher VDSS rating

* Higher dv/dt capability

* Excellent switching performance

* 100% avalanche tested Figure 1. Internal schematic diagram Applications
