STEF512SRX - Dual electronic fuse

STEF512SRX Description

STEF512SRX Datasheet Dual electronic fuse for 5 V and 12 V rails with reverse current blocking Maturity status link STEF512SRX .
The STEF512SRX is an integrated dual electronic fuse, designed to protect circuitry on the output from overcurrent and overvoltage events, in those ap.

STEF512SRX Features

* 5 V and 12 V channels into one chip
* 25 V absolute maximum input voltage
* Precise output overvoltage clamp
* Fixed overcurrent protection for both channels
* Reverse current protection on 5 V channel
* Thermal protection
* Available in auto

STEF512SRX Applications

* HD and SSD
* Hard disk arrays and NAS

📥 Download Datasheet

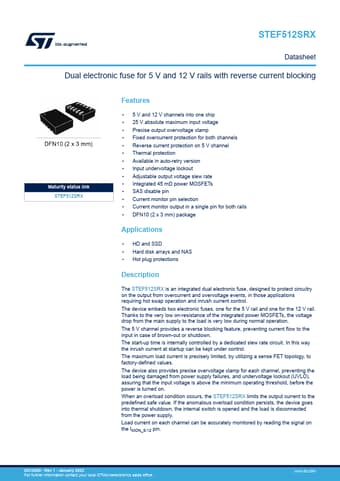

Preview of STEF512SRX PDF
datasheet Preview Page 2 datasheet Preview Page 3
