STF4LNK60Z N-channel Power MOSFET

STF4LNK60Z Description

STD4LNK60Z STF4LNK60Z N-channel 600 V, 2.2 Ω, 3.3 A, TO-220FP, DPAK Zener-protected SuperMESH™ Power MOSFET Preliminary Data .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STF4LNK60Z Features

* Type STD4LNK60Z STF4LNK60Z
* VDSS 600 V 600 V RDS(on) max < 2.7 Ω < 2.7 Ω ID 3.3 A 3.3 A Pw 70 W 25 W 3 1 2 1 3 Extremely high dv/dt capability 100% avalanche tested Gate charge minimized Very low intrinsic capacitances Improved ESD capability Figure 1. TO-220FP DP

📥 Download Datasheet

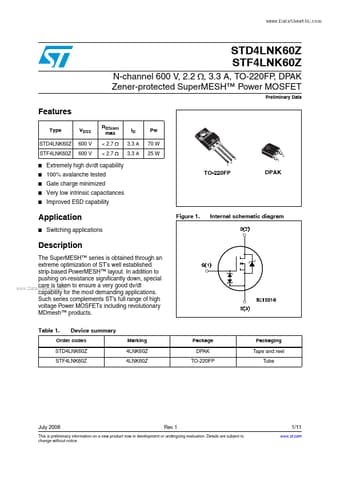

Preview of STF4LNK60Z PDF
datasheet Preview Page 2 datasheet Preview Page 3
