STF92 SMALL SIGNAL PNP TRANSISTOR

STF92 Description

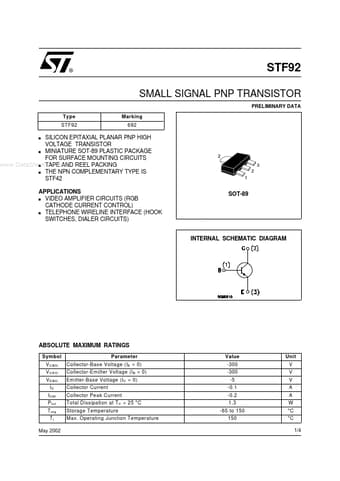

® STF92 SMALL SIGNAL PNP TRANSISTOR PRELIMINARY DATA Type STF92 s Marking 692 SILICON EPITAXIAL PLANAR PNP HIGH VOLTAGE TRANSISTOR s MINIATURE SOT.

STF92 Applications

* VIDEO AMPLIFIER CIRCUITS (RGB CATHODE CURRENT CONTROL) s TELEPHONE WIRELINE INTERFACE (HOOK SWITCHES, DIALER CIRCUITS) s SOT-89 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC I CM P tot T stg Tj May 2002 Parameter Collector-Base Voltage (I E = 0) Collector-Emitter
