STF9HN65M2

N-channel Power MOSFET

STF9HN65M2 Features

* Order code STF9HN65M2 VDS 600 V RDS(on) max. 0.82 Ω ID 5.5 A

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This device is an N-channel P

STF9HN65M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(3).

STF9HN65M2 Datasheet (329.04 KB)

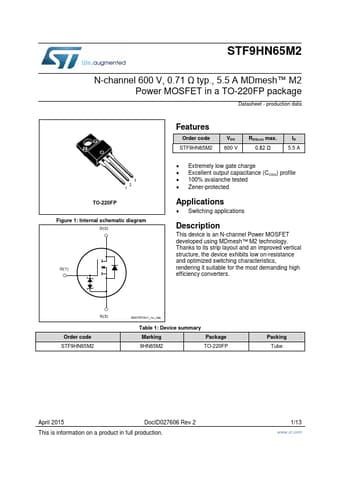

Preview of STF9HN65M2 PDF

Datasheet Details

Part number:

STF9HN65M2

Manufacturer:

STMicroelectronics ↗

File Size:

329.04 KB

Description:

N-channel power mosfet.
STF9HN65M2 N-channel 600 V, 0.71 Ω typ., 5.5 A MDmesh™ M2 Power MOSFET in a TO-220FP package Datasheet - production data 3 12 TO-220FP Figure 1: Int.
