STF9NM60N Datasheet, Mosfet, INCHANGE

STF9NM60N Features

  • Mosfet
  • Drain Current
      –ID= 6.5A@ TC=25℃
  • Drain Source Voltage- : VDSS= 600V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 0.745Ω(Max)
  • 100

PDF File Details

Part number:

STF9NM60N

Manufacturer:

INCHANGE

File Size:

261.71kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

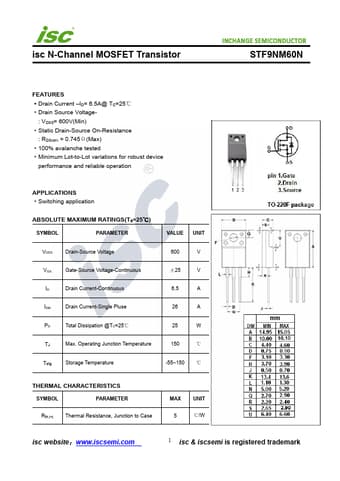

Datasheet Preview: STF9NM60N 📥 Download PDF (261.71kb)
Page 2 of STF9NM60N

STF9NM60N Application

  • Applications
  • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VG
