STFI26NM60N

N-channel Power MOSFET

STFI26NM60N Features

* Order code STFI26NM60N VDS 600 V RDS(on) max 0.165 Ω ID 20 A

* Fully insulated and low profile package with increased creepage path from pin to heatsink plate

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

* Switching

STFI26NM60N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .

STFI26NM60N Datasheet (780.32 KB)

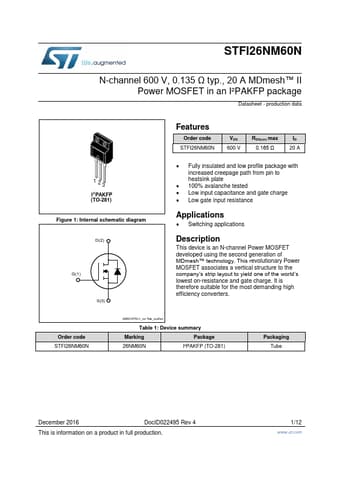

Preview of STFI26NM60N PDF

Datasheet Details

Part number:

STFI26NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

780.32 KB

Description:

N-channel power mosfet.
STFI26NM60N N-channel 600 V, 0.135 Ω typ., 20 A MDmesh™ II Power MOSFET in an I²PAKFP package Datasheet - production data 1 23 I 2 PAKFP (TO-281) Fi.
