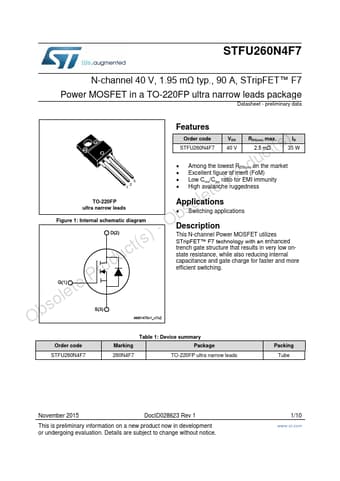

STFU260N4F7 Datasheet (STMicroelectronics)

STFU260N4F7, N-channel Power MOSFET

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Order code STFU260N4F7 Table 1: Device summary Marking

STFU260N4F7 Features

* roduct(s)3 P2 1 leteTO-220FP oultra narrow leads Obsolete Product(s) - ObsFigure 1: Internal schematic diagram Order code STFU260N4F7 VDS 40 V RDS(on) max. 2.5 mΩ ID 35 W

* Among the lowest RDS(on) on the market

* Excellent figure of merit (FoM)

* Low Crss/Ciss ratio for EMI immuni
