STG3684A Datasheet, Switch, STMicroelectronics

STG3684A Features

  • Switch
  • Ultra low power dissipation: ICC = 0.2 μA (max.) at TA = 85 °C Low ON resistance VIN = 0 V:
      – RON = 0.45 Ω (max. TA = 25 °C) at VCC = 4.3 V
    &nbs

PDF File Details

Part number:

STG3684A

Manufacturer:

STMicroelectronics ↗

File Size:

445.02kb

Download:

📄 Datasheet

Description:

Dual spdt switch. The STG3684A is a high-speed CMOS dual analog SPDT (single-pole dual-throw) switch or dual 2:1 multiplexer/demultiplexer bus switch f

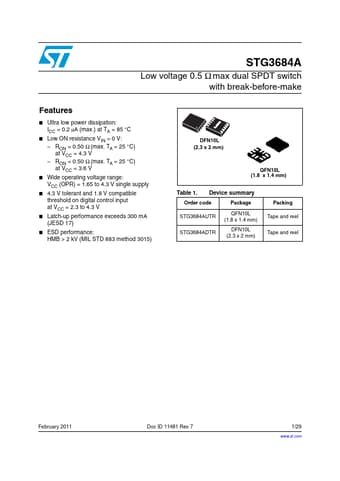

Datasheet Preview: STG3684A 📥 Download PDF (445.02kb)
Page 2 of STG3684A Page 3 of STG3684A

STG3684A Application

  • Applications Table 1. Device summary Order code STG3684AUTR STG3684ADTR Package QFN10L (1.8 x 1.4 mm) DFN10L (2.3 x 2 mm) Rev 6 Packaging Tape an
