STG3690 Datasheet, Switch, ST Microelectronics

STG3690 Features

• Switch are fast switching speed, Break Before Make Delay Time and Ultra Low Power Consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving the

PDF File Details

Part number:

STG3690

Manufacturer:

STMicroelectronics ↗

File Size:

430.23kb

Download:

📄 Datasheet

Description:

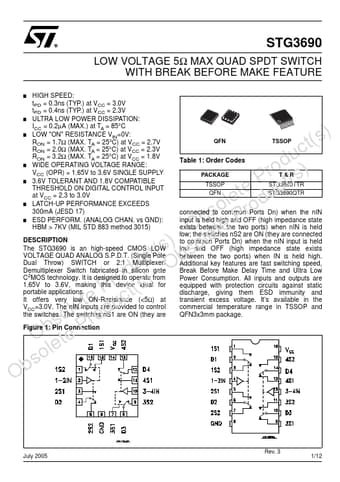

Low voltage 5ohm max quad spdt switch. The STG3690 is an high-speed CMOS LOW VOLTAGE QUAD ANALOG S.P.D.T. (Single Pole Dual Throw) SWITCH or 2:1 Multiplexer/ Demultiplexer

STG3690 Application

• Applications It offers very low ON-Resistance (<5Ω) at VCC=3.0V. The nIN inputs are provided to control the switches. The switches nS1 are ON (they
