STG3689 Datasheet, Switch, STMicroelectronics

STG3689 Features

  • Switch
  • Low quiescent supply current:
      – Max ± 50µA for V1IN, V2IN = 1.80V at VCC = 4.3V Ultra low power dissipation:
      – ICC = 0.2µA (Max.) at TA = 85°C

PDF File Details

Part number:

STG3689

Manufacturer:

STMicroelectronics ↗

File Size:

240.03kb

Download:

📄 Datasheet

Description:

Dual spdt switch. The STG3689 is a high-speed CMOS low voltage dual analog S.P.D.T. (Single Pole Dual Throw) switch or 2:1 Multiplexer/Demultiplexer sw

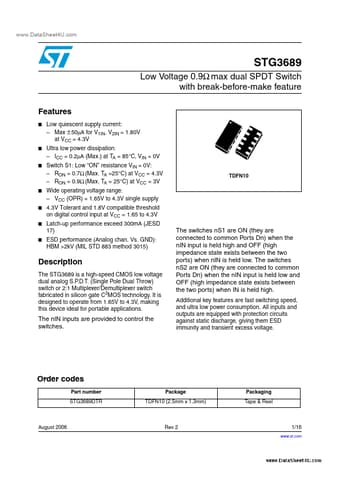

Datasheet Preview: STG3689 📥 Download PDF (240.03kb)
Page 2 of STG3689 Page 3 of STG3689

STG3689 Application

  • Applications The switches nS1 are ON (they are connected to common Ports Dn) when the nIN input is held high and OFF (high impedance state exists
