STG3482 Datasheet, Switch, STMicroelectronics

STG3482 Features

  • Switch
  • Ultra low power dissipation:
      – ICC = 0.1 μA (max.) at TA = 25 °C Low “ON” resistance:
      – RON = 4.6 Ω (TA = 25 °C) at VCC = 4.3 V

PDF File Details

Part number:

STG3482

Manufacturer:

STMicroelectronics ↗

File Size:

252.92kb

Download:

📄 Datasheet

Description:

Low voltage dual sp4t switch. The STG3482 is a high-speed CMOS low voltage dual analog SP4T (single pole four throw) switch or 4:1 multiplexer/demultiplexer switch

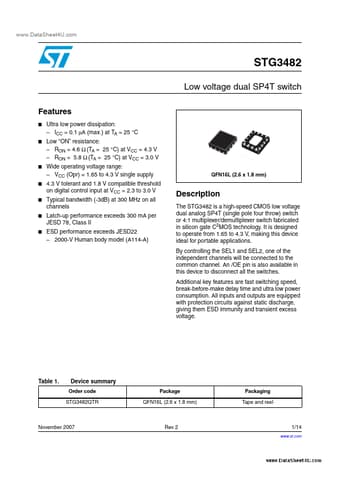

Datasheet Preview: STG3482 📥 Download PDF (252.92kb)
Page 2 of STG3482 Page 3 of STG3482

STG3482 Application

  • Applications By controlling the SEL1 and SEL2, one of the independent channels will be connected to the common channel. An /OE pin is also availabl
