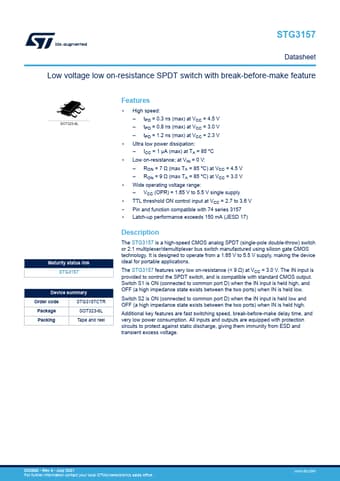

STG3157 Datasheet, Switch, ST Microelectronics

STG3157 Features

• Switch
• High speed:
    – tPD = 0.3 ns (max) at VCC = 4.5 V
    – tPD = 0.8 ns (max) at VCC = 3.0 V
    – tPD = 1.2 ns (max) at VCC = 2.3 V

PDF File Details

Part number:

STG3157

Manufacturer:

STMicroelectronics ↗

File Size:

391.36kb

Download:

📄 Datasheet

Description:

Low voltage low on-resistance spdt switch. The STG3157 is a high-speed CMOS analog SPDT (single-pole double-throw) switch or 2:1 multiplexer/demultiplexer bus switch manufactur

STG3157 Application

• Applications The STG3157 features very low on-resistance (< 9 Ω) at VCC = 3.0 V. The IN input is provided to control the SPDT switch, and is compat
