STG3220 Datasheet, Switch, ST Microelectronics

STG3220 Features

  • Switch
  • Ultra low power dissipation:
      – ICC = 1 μA (max.) at TA = 85 °C
  • Low "ON" resistance:
      – RON = 4.8 Ω (TA = 25 ºC) at VCC = 4.3 V
    &nb

PDF File Details

Part number:

STG3220

Manufacturer:

STMicroelectronics ↗

File Size:

485.42kb

Download:

📄 Datasheet

Description:

Low voltage high bandwidth dual spdt switch. The STG3220 is a high-speed CMOS low voltage dual analog SPDT (single pole dual throw) switch or 2:1 multiplexer/de-multiplexer switc

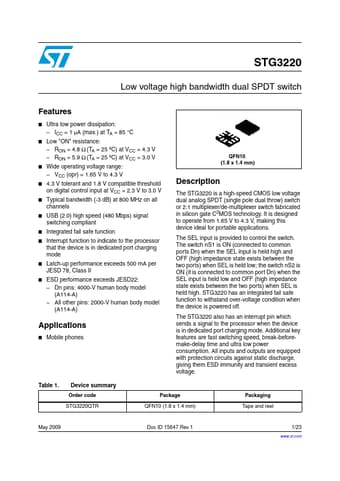

Datasheet Preview: STG3220 📥 Download PDF (485.42kb)
Page 2 of STG3220 Page 3 of STG3220

STG3220 Application

  • Applications
  • Mobile phones QFN10 (1.8 x 1.4 mm) Description The STG3220 is a high-speed CMOS low voltage dual analog SPDT (single pole du
