STG3155 Datasheet, Switch, ST Microelectronics

STG3155 Features

  • Switch
  • High speed:
      – tPD = 1.5ns (Typ.) at VCC = 3.0V
      – tPD = 1.5ns (Typ.) at VCC = 2.3V Ultra low power dissipation:
      – ICC = 0.2µA (

PDF File Details

Part number:

STG3155

Manufacturer:

STMicroelectronics ↗

File Size:

422.78kb

Download:

📄 Datasheet

Description:

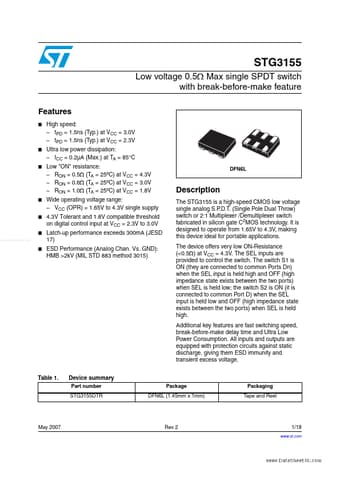

Low voltage 0.5 ohm max single spdt switch. The STG3155 is a high-speed CMOS low voltage single analog S.P.D.T. (Single Pole Dual Throw) switch or 2:1 Multiplexer /Demultiplexer

Datasheet Preview: STG3155 📥 Download PDF (422.78kb)
Page 2 of STG3155 Page 3 of STG3155

STG3155 Application

  • Applications The device offers very low ON-Resistance (<0.5Ω) at VCC = 4.3V. The SEL inputs are provided to control the switch. The switch S1 is ON
