STGP20H60DF - 600V 20A high speed trench gate field-stop IGBT

This page provides the datasheet information for the STGP20H60DF, a member of the STGB20H60DF 600V 20A high speed trench gate field-stop IGBT family.

Product Overview

STMicroelectronics

📥 Download Datasheet

STGP20H60DF 600V 20A high speed trench gate field-stop IGBT by STMicroelectronics - Datasheet Preview — Datasheet preview – STGP20H60DF

Datasheet Details

Part number	STGP20H60DF
Manufacturer	STMicroelectronics
File Size	1.81 MB
Description	600V 20A high speed trench gate field-stop IGBT
Datasheet	STGP20H60DF Datasheet

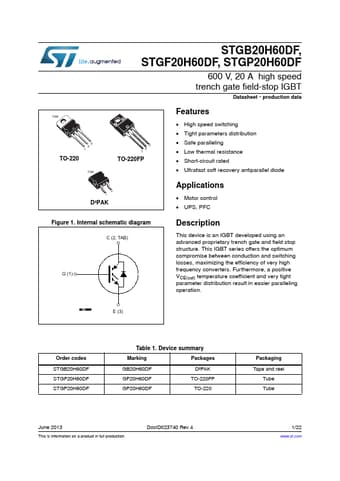

Additional preview pages of the STGP20H60DF datasheet.

STGP20H60DF Product details

Description

This device is an IGBT developed using an advanced proprietary trench gate and field stop structure.

This IGBT series offers the optimum compromise between conduction and switching losses, maximizing the efficiency of very high frequency converters.

Features

High speed switching.
Tight parameters distribution.
Safe paralleling.
Low thermal resistance.
Short-circuit rated.
Ultrafast soft recovery antiparallel diode.
