STGW25H120DF2 Trench gate field-stop IGBT

STMicroelectronics

STGW25H120DF2 Description

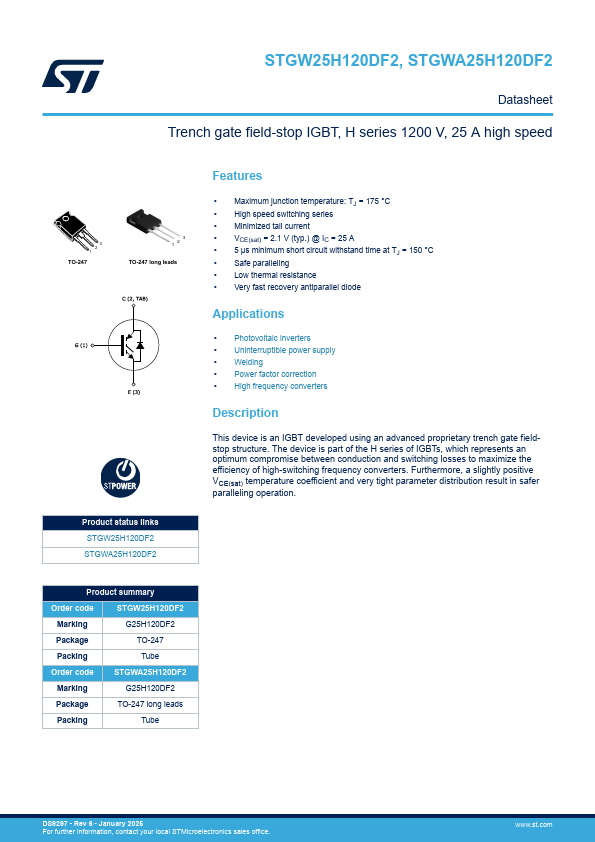

STGW25H120DF2, STGWA25H120DF2 Datasheet Trench gate field-stop IGBT, H series 1200 V, 25 A high speed 3 2 1 TO-247 3 12 TO-247 long leads Product s.
This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure.

STGW25H120DF2 Features

* Maximum junction temperature: TJ = 175 °C
* High speed switching series
* Minimized tail current
* VCE(sat) = 2.1 V (typ. ) @ IC = 25 A
* 5 μs minimum short circuit withstand time at TJ = 150 °C
* Safe paralleling
* Low thermal resistance

STGW25H120DF2 Applications

* Photovoltaic inverters
* Uninterruptible power supply
* Welding
* Power factor correction

📥 Download Datasheet

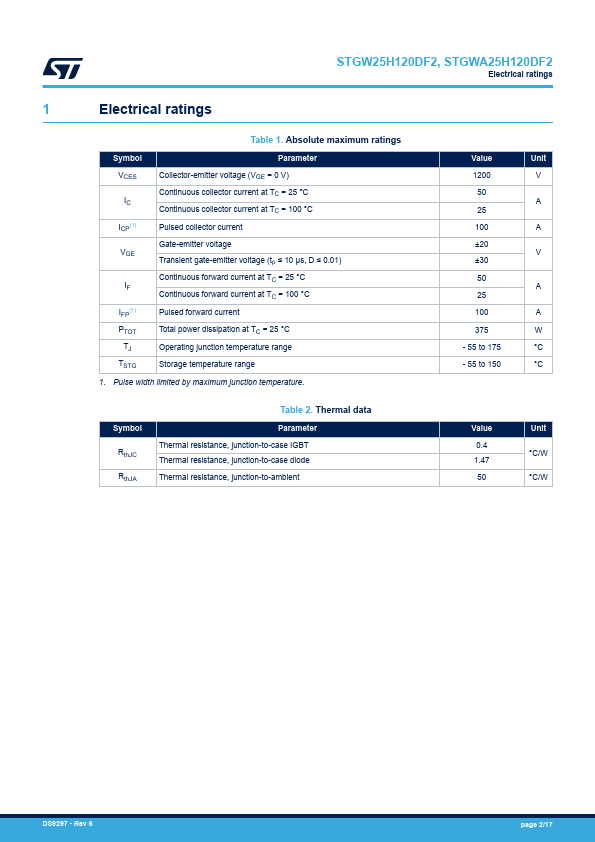

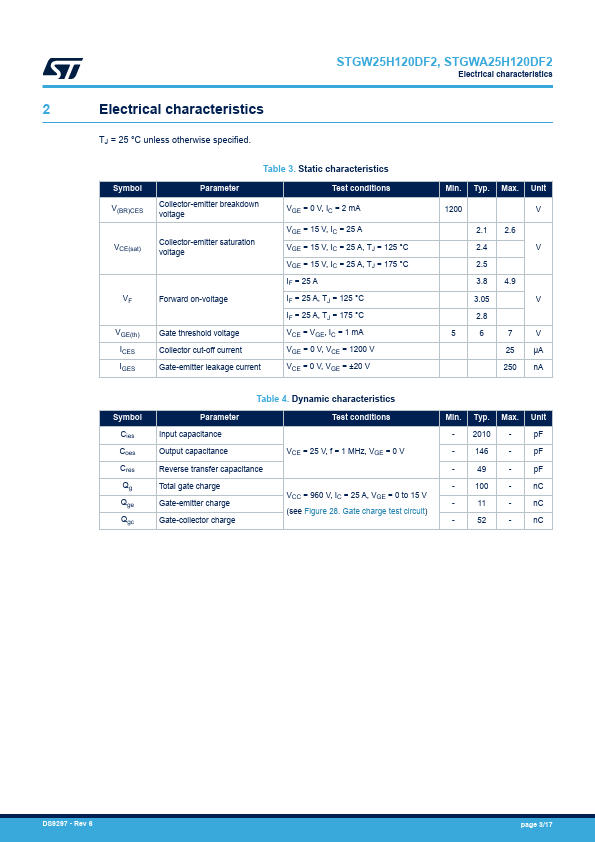

STGW25H120DF2 Datasheet Preview — Preview of STGW25H120DF2 PDF

Datasheet Details

Part number: STGW25H120DF2
Manufacturer: STMicroelectronics ↗
File Size: 911.18 KB
Datasheet: STGW25H120DF2-STMicroelectronics.pdf
Description: Trench gate field-stop IGBT
