STGWA40H120F2, STGW40H120F2 Datasheet - STMicroelectronics

STGWA40H120F2 1200V 40A IGBT

These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. The device is part of the H series IGBTs, which represent an optimum compromise between conduction and switching losses to maximize the efficiency of high-switching frequency converters. Furthermore, a .

STGWA40H120F2 Features

* Maximum junction temperature: TJ = 175 °C

* High speed switching series

* Minimized tail current

* VCE(sat) = 2.1 V (typ.) @ IC = 40 A

* 5 μs minimum short-circuit withstand time at TJ = 150 °C

* Safe paralleling

* Low thermal resista

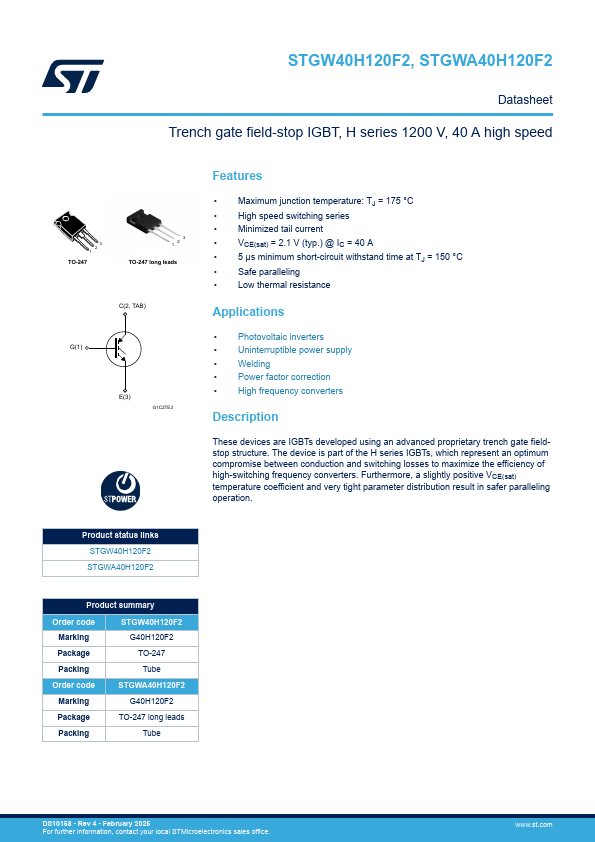

STGW40H120F2-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STGWA40H120F2, STGW40H120F2. Please refer to the document for exact specifications by model.

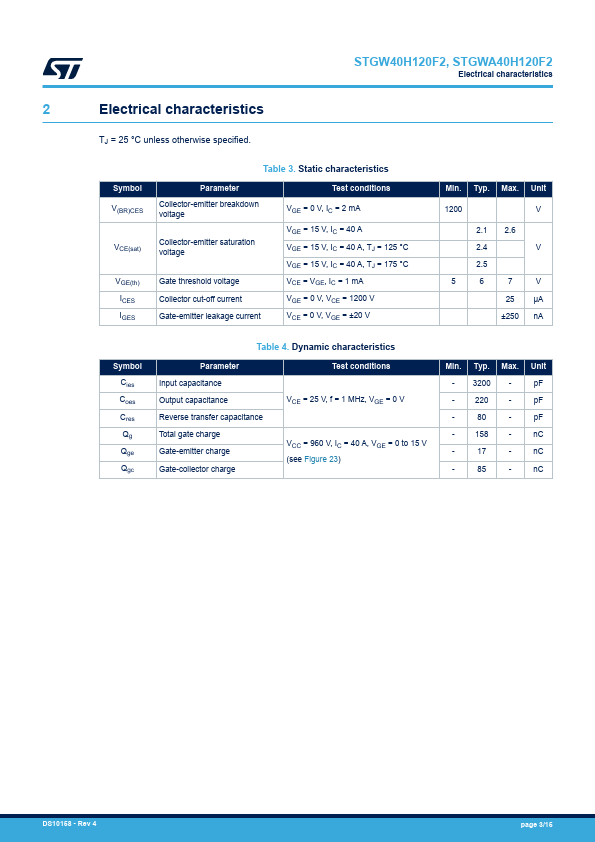

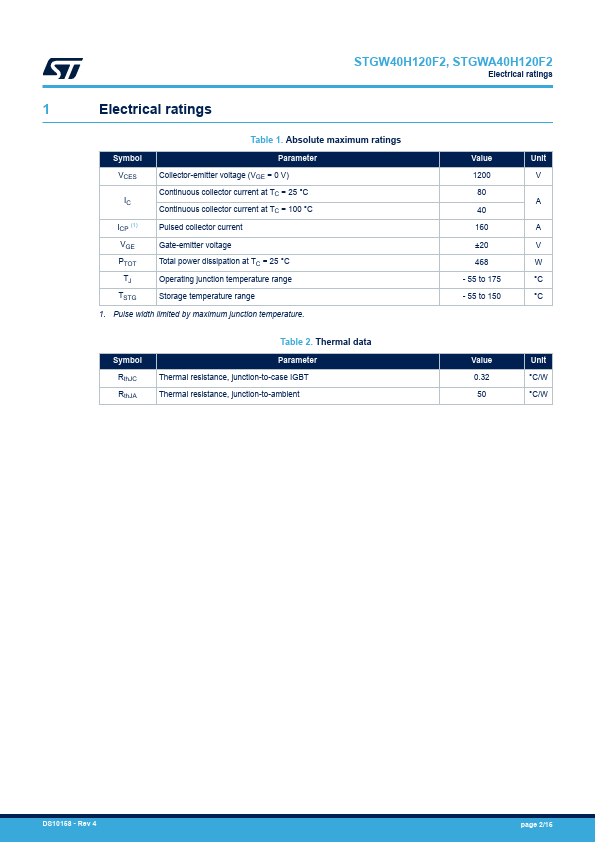

STGWA40H120F2 Datasheet Preview Page 2 STGWA40H120F2 Datasheet Preview Page 3

Datasheet Details

Part number:

STGWA40H120F2, STGW40H120F2

Manufacturer:

STMicroelectronics ↗

File Size:

819.16 KB

Description:

1200v 40a igbt.

Note:

This datasheet PDF includes multiple part numbers: STGWA40H120F2, STGW40H120F2.
Please refer to the document for exact specifications by model.
