STGWA40H60DLFB - IGBT

STMicroelectronics

Datasheet Details

Part number	STGWA40H60DLFB
Manufacturer	STMicroelectronics ↗
File Size	867.36 KB
Description	IGBT
Datasheet	STGWA40H60DLFB-STMicroelectronics.pdf

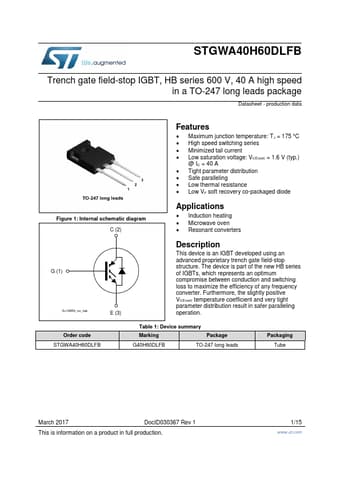

This device is an IGBT developed using an advanced proprietary trench gate field-stop structure.

Maximum junction temperature: TJ = 175 °C.
High speed switching series.
Minimized tail current.
Low saturation voltage: VCE(sat) = 1.6 V (typ. ) @ IC = 40 A.
Tight parameter distribution.
Safe paralleling.
Low thermal resistance.
Low VF soft recovery co-packaged diode Figure 1: Internal schematic diagram C (2).
