STGWA75H65DFB2 - IGBT

STMicroelectronics

The STGWA75H65DFB2 by STMicroelectronics is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

STGWA75H65DFB2 IGBT by STMicroelectronics - Datasheet Preview — Official preview page of the STGWA75H65DFB2 IGBT datasheet (STMicroelectronics).

Datasheet Details

Part number	STGWA75H65DFB2
Manufacturer	STMicroelectronics
File Size	555.45 KB
Description	IGBT
Datasheet	STGWA75H65DFB2-STMicroelectronics.pdf
Additional preview pages of the STGWA75H65DFB2 datasheet.

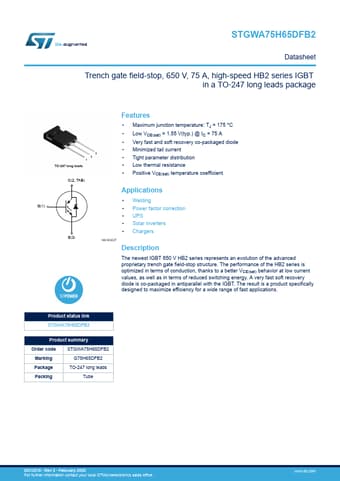

STGWA75H65DFB2 Product details

Description

The newest IGBT 650 V HB2 series represents an evolution of the advanced proprietary trench gate field-stop structure.

Features

C(2, TAB).
Maximum junction temperature: TJ = 175 °C.
Low VCE(sat) = 1.55 V(typ. ) @ IC = 75 A.
Very fast and soft recovery co-packaged diode.
Minimized tail current.
Tight parameter distribution.
Low thermal resistance.
Positive VCE(sat) temperature coefficient.
