STGWA75M65DF2

IGBT

STGWA75M65DF2 Features

* 6 µs of short-circuit withstand time

* VCE(sat) = 1.65 V (typ.) @ IC = 75 A

* Tight parameter distribution

* Safer paralleling

* Low thermal resistance

* Soft and very fast recovery antiparallel diode Applications

* Motor control

* UPS

* PFC Description These de

STGWA75M65DF2 General Description

These devices are IGBTs developed using an advanced proprietary trench gate field-stop structure. The devices are part of the M series IGBTs, which represent an optimal balance between inverter system performance and efficiency where low-loss and short-circuit functionality are essential. Furthermor.

STGWA75M65DF2 Datasheet (834.36 KB)

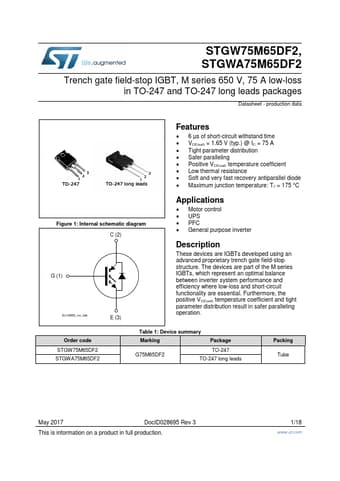

Preview of STGWA75M65DF2 PDF

Datasheet Details

Part number:

STGWA75M65DF2

Manufacturer:

STMicroelectronics ↗

File Size:

834.36 KB

Description:

Igbt.
STGW75M65DF2, STGWA75M65DF2 Trench gate field-stop IGBT, M series 650 V, 75 A low loss Datasheet - production data Figure 1: Internal schematic diag.
