STGWF30NC60S

IGBT

STMicroelectronics

STGWF30NC60S Features

* Optimized performance for medium operating frequencies up to 5 kHz in hard switching

* Low on-voltage drop (VCE(sat))

* High current capability Application Motor drive Description This device utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching

STGWF30NC60S General Description

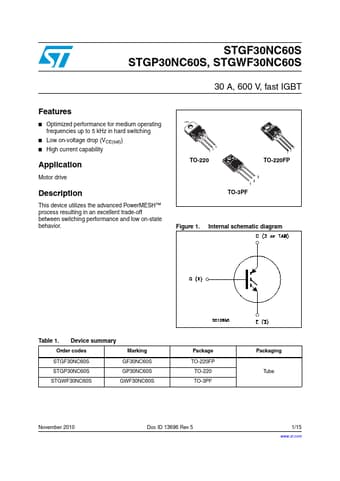

This device utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. TAB 3 2 1 TO-220 3 2 1 TO-220FP 1 3 2 1 TO-3PF Figure 1. Internal schematic diagram Table 1. Device summary Order codes Marking STGF30NC60S GF30N.

STGWF30NC60S Datasheet (491.35 KB)
