STGWS38IH130D, STGWT38IH130D Datasheet - STMicroelectronics

STGWT38IH130D-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STGWS38IH130D, STGWT38IH130D. Please refer to the document for exact specifications by model.

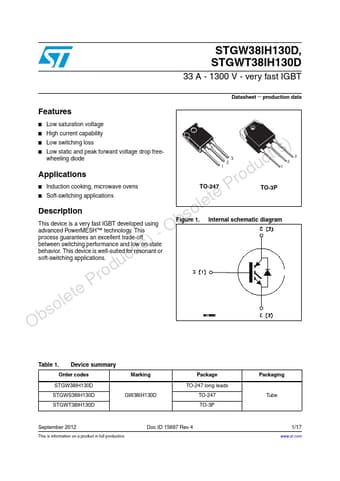

STGWS38IH130D Datasheet Preview Page 2 STGWS38IH130D Datasheet Preview Page 3

Datasheet Details

Part number:

STGWS38IH130D, STGWT38IH130D

Manufacturer:

STMicroelectronics ↗

File Size:

796.75 KB

Description:

Very fast igbt.

Note:

This datasheet PDF includes multiple part numbers: STGWS38IH130D, STGWT38IH130D.
Please refer to the document for exact specifications by model.

STGWS38IH130D, STGWT38IH130D, very fast IGBT

This device is a very fast IGBT developed using advanced PowerMESHâ„¢ technology.

This process guarantees an excellent trade-off between switching performance and low on-state behavior.

This device is well-suited for resonant or soft-switching applications.

Figure 1.

Internal schematic diagram Table
