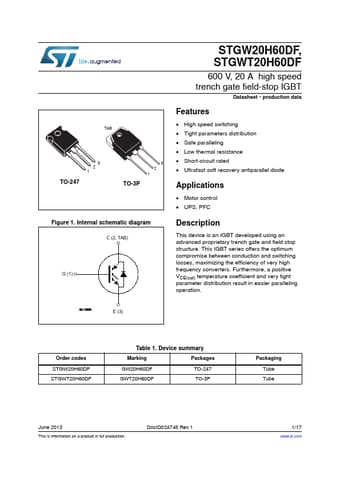

STGWT20H60DF Datasheet, Igbt, STMicroelectronics

STGWT20H60DF Features

• Igbt
• High speed switching
• Tight parameters distribution
• Safe paralleling
• Low thermal resistance
• Short-circuit rated
• Ultrafast soft

PDF File Details

Part number:

STGWT20H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

1.26MB

Download:

📄 Datasheet

Description:

600v 20a high speed trench gate field-stop igbt. This device is an IGBT developed using an advanced proprietary trench gate and field stop structure. This IGBT series offers the opti

STGWT20H60DF Application

• Applications
• Motor control
• UPS, PFC Description This device is an IGBT developed using an advanced proprietary trench gate and f
