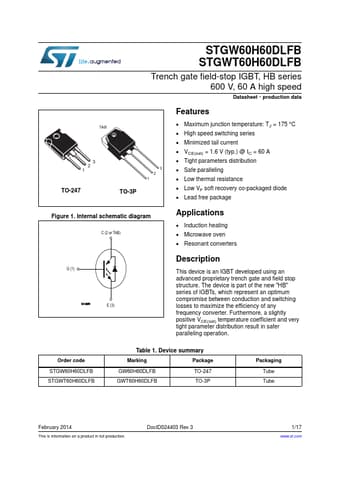

STGWT60H60DLFB Datasheet, Igbt, STMicroelectronics

STGWT60H60DLFB Features

• Igbt
• Maximum junction temperature: TJ = 175 °C
• High speed switching series
• Minimized tail current
• VCE(sat) = 1.6 V (typ.) @ IC = 60 A
• Tight

PDF File Details

Part number:

STGWT60H60DLFB

Manufacturer:

STMicroelectronics ↗

File Size:

828.95kb

Download:

📄 Datasheet

Description:

Trench gate field-stop igbt. This device is an IGBT developed using an advanced proprietary trench gate and field stop structure. The device is part of the new "H

STGWT60H60DLFB Application

• Applications
• Induction heating
• Microwave oven
• Resonant converters G (1) E (3) Description This device is an IGBT dev
