STGWT60H65FB Datasheet, Igbt, STMicroelectronics

STGWT60H65FB Features

  • Igbt
  • Maximum junction temperature: TJ = 175 °C
  • High speed switching series
  • Minimized tail current
  • VCE(sat) = 1.6 V (typ.) @ IC = 60 A
  • Tight

PDF File Details

Part number:

STGWT60H65FB

Manufacturer:

STMicroelectronics ↗

File Size:

714.15kb

Download:

📄 Datasheet

Description:

Trench gate field-stop igbt. These are IGBT devices developed using an advanced proprietary trench gate and field-stop structure. The devices are part of the new

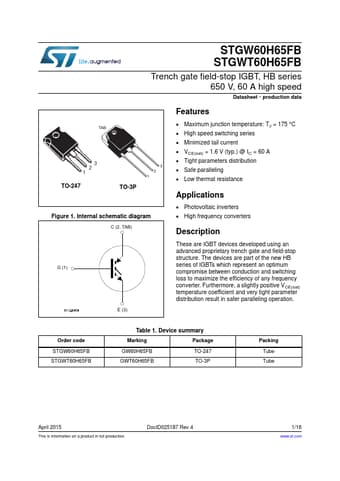

Datasheet Preview: STGWT60H65FB 📥 Download PDF (714.15kb)
Page 2 of STGWT60H65FB Page 3 of STGWT60H65FB

STGWT60H65FB Application

  • Applications
  • Photovoltaic inverters
  • High frequency converters Description These are IGBT devices developed using an advanced pro
