STK184N4F7AG - Automotive-grade N-channel Power MOSFET

Datasheet Summary

Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

  • Order code STK184N4F7AG V DS 40 V RDS(on) max. 2.0 mΩ.
  • AEC-Q101 qualified.
  • Among the lowest RDS(on) on the market.
  • Excellent FoM (figure of merit).
  • Low Crss/Ciss ratio for EMI immunity.
  • High avalanche ruggedness.

📥 Download Datasheet

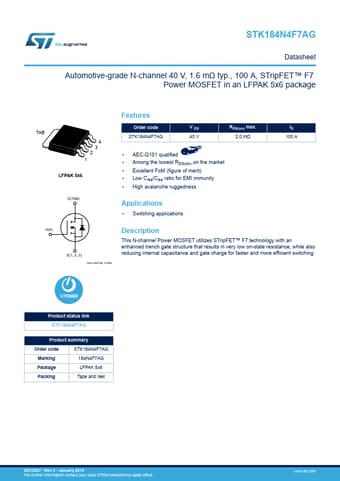

Datasheet preview – STK184N4F7AG

Datasheet Details

Part number STK184N4F7AG
Manufacturer STMicroelectronics
File Size 443.67 KB
Description Automotive-grade N-channel Power MOSFET
Datasheet download datasheet STK184N4F7AG Datasheet
Additional preview pages of the STK184N4F7AG datasheet.
