STL10LN80K5

N-channel Power MOSFET

STL10LN80K5 Features

* Order code STL10LN80K5 VDS 800 V RDS(on) max. 0.66 Ω ID 6A

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This very high voltage

STL10LN80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STL10LN80K5 Datasheet (684.03 KB)

Preview of STL10LN80K5 PDF

Datasheet Details

Part number:

STL10LN80K5

Manufacturer:

STMicroelectronics ↗

File Size:

684.03 KB

Description:

N-channel power mosfet.

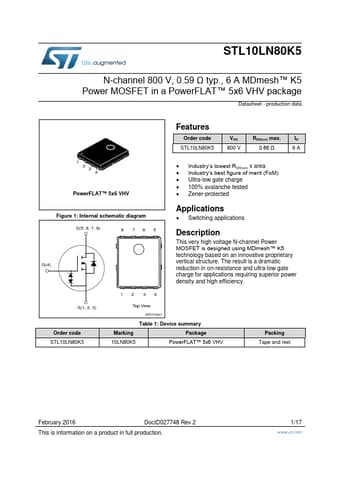

STL10LN80K5 N-channel 800 V, 0.59 Ω typ., 6 A MDmesh™ K5 Power MOSFET in a PowerFLAT™ 5x6 VHV package Datasheet - production data 1 2 3 4 PowerFLAT™.
