STL10N3LLH5 Datasheet - STMicroelectronics

STL10N3LLH5 - N-channel Power MOSFET

This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™ V technology.

The device has been optimized to achieve very low on-state resistance, contributing to an FOM that is among the best in its class.

PowerFLAT™ 3.3x3.3 Figure 1.

Internal schematic diagram 123 4 SSS

STL10N3LLH5 Features

* Order code STL10N3LLH5 VDSS 30 V RDS(on) max < 0.019 Ω 1. The value is rated according Rthj-pcb

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* Very low switching gate charge

* High avalanche ruggedness

* Low gate drive power losses ID 9 A (1)

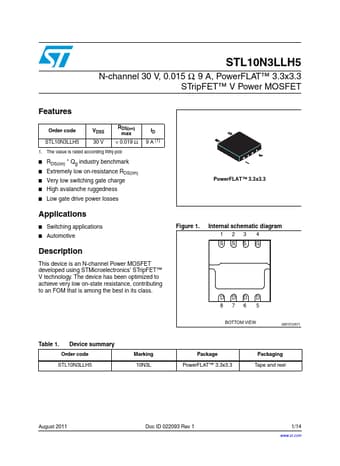

STL10N3LLH5-STMicroelectronics.pdf

Preview of STL10N3LLH5 PDF
STL10N3LLH5 Datasheet Preview Page 2 STL10N3LLH5 Datasheet Preview Page 3

Datasheet Details

Part number:

STL10N3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

679.43 KB

Description:

N-channel power mosfet.
