STL10N60M2 - N-channel Power MOSFET

STMicroelectronics

The STL10N60M2 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STL10N60M2
Manufacturer	STMicroelectronics
File Size	0.97 MB
Description	N-channel Power MOSFET
Datasheet	STL10N60M2-STMicroelectronics.pdf
Additional preview pages of the STL10N60M2 datasheet.

This device is an N-channel Power MOSFET developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg.

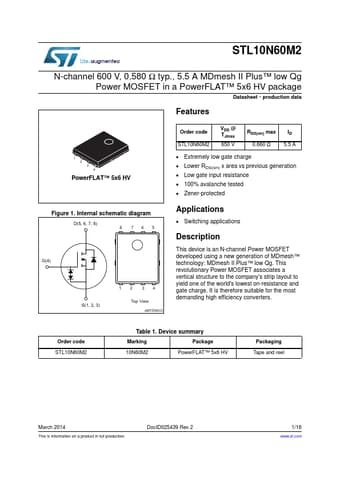

1 2 3 4 PowerFLAT™ 5x6 HV Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View AM15540v3 Order code STL10N60M2 VDS @ TJmax 650 V RDS(on) max 0.660 Ω ID 5.5 A.
Extremely low gate charge.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected.
