STL140N4F7AG Datasheet - STMicroelectronics

N-channel Power MOSFET

STL140N4F7AG Features

* Order code STL140N4F7AG VDS 40 V RDS(on) max 2.5 mΩ ID 120 A

* AEC-Q101 qualified

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness

* Wettable flank package Applications

* Swit

STL140N4F7AG General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STL140N4F7AG Table 1: Device summary Marki.

STL140N4F7AG Datasheet (794.33 KB)

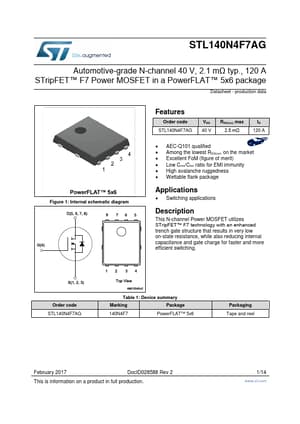

STL140N4F7AG Datasheet Preview — Preview of STL140N4F7AG PDF

Datasheet Details

Part number:

STL140N4F7AG

Manufacturer:

STMicroelectronics ↗

File Size:

794.33 KB

Description:

N-channel power mosfet.
STL140N4F7AG Automotive-grade N-channel 40 V, 2.1 mΩ typ., 120 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 package Datasheet - production data F.
