STL4LN80K5

N-channel Power MOSFET

STMicroelectronics

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	STMicroelectronics	STL4LN80K5	MOSFET N-CH 800V 3A PWRFLAT VHV	DigiKey	0	6000 units	$0.62	🛒 Buy Now

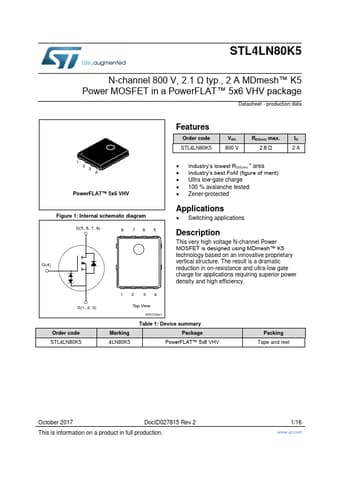

STL4LN80K5 Datasheet (724.20 KB)

STL4LN80K5 Datasheet Preview — Preview of STL4LN80K5 PDF

Datasheet Details

Part number:

STL4LN80K5

Manufacturer:

STMicroelectronics ↗

File Size:

724.20 KB

Description:

N-channel power mosfet.
STL4LN80K5 N-channel 800 V, 2.1 Ω typ., 2 A MDmesh™ K5 Power MOSFET in a PowerFLAT™ 5x6 VHV package Datasheet - production data 1 2 3 4 PowerFLAT™ 5.

STL4LN80K5 Features

* Order code STL4LN80K5 VDS 800 V RDS(on) max. 2.6 Ω ID 2A

* Industry’s lowest RDS(on)

* area

* Industry’s best FoM (figure of merit)

* Ultra low-gate charge

* 100 % avalanche tested

* Zener-protected Applications

* Switching applications Description This very high volt

STL4LN80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.
