STL66DN3LLH5 Datasheet - STMicroelectronics

Dual N-channel Power MOSFET

STL66DN3LLH5 Features

* Type STL66DN3LLH5 VDSS 30 V RDS(on) max < 6.5 mΩ ID 20 A (1) 1 2 1. The value is rated according Rthj-pcb

* Logic level VGS(th) 175 °C junction temperature 3 4 PowerFLAT™ 5x6 double island Applications

* Switching applications Automotive Figure 1. Internal schematic diagram

STL66DN3LLH5 General Description

This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™V technology. The device has been optimized to achieve very low on-state resistance, contributing to an FOM that is among the best in its class. Top view Table 1. Device summary Marking 66DN3LLH5 Package PowerFL.

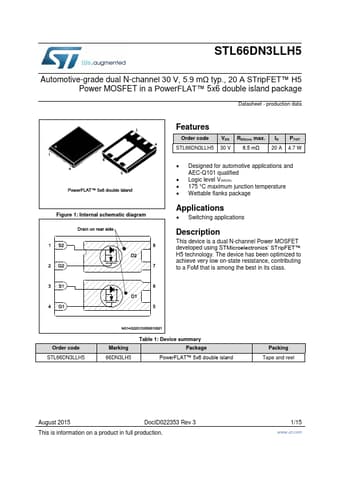

STL66DN3LLH5 Datasheet (808.82 KB)

STL66DN3LLH5 Datasheet Preview — Preview of STL66DN3LLH5 PDF

Datasheet Details

Part number:

STL66DN3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

808.82 KB

Description:

Dual n-channel power mosfet.
STL66DN3LLH5 Dual N-channel 30 V, 5.9 mΩ , 20 A STripFET™ V Power MOSFET in PowerFLAT™ 5x6 double island package Datasheet production data .
