STL6P3LLH6 - P-CHANNEL POWER MOSFET

STMicroelectronics

The STL6P3LLH6 by STMicroelectronics is a P-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STL6P3LLH6 P-CHANNEL POWER MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the STL6P3LLH6 P-CHANNEL POWER MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STL6P3LLH6
Manufacturer	STMicroelectronics
File Size	677.13 KB
Description	P-CHANNEL POWER MOSFET
Datasheet	STL6P3LLH6-STMicroelectronics.pdf

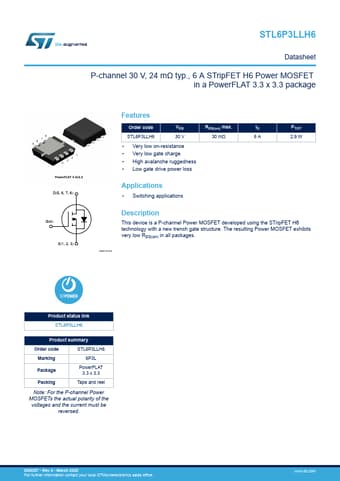

Additional preview pages of the STL6P3LLH6 datasheet.

STL6P3LLH6 Product details

Description

This device is a P-channel Power MOSFET developed using the STripFET H6 technology with a new trench gate structure.

Features

Order code VDS STL6P3LLH6 30 V.
Very low on-resistance.
Very low gate charge.
High avalanche ruggedness.
Low gate drive power loss RDS(on) max. 30 mΩ ID 6A PTOT 2.9 W.
