Description

STLQ015 Datasheet 150 mA, ultra low quiescent current linear voltage regulator SOT23-5L Maturity status link STLQ015 .
The STLQ015 provides 150 mA of maximum current with an input voltage range from 1.

📥 Download Datasheet

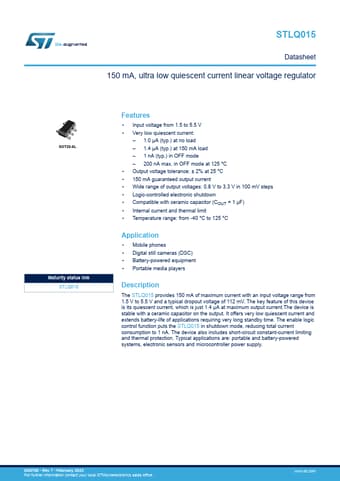

STLQ015 Datasheet Preview — Preview of STLQ015 PDF

Datasheet Specifications

Part number: STLQ015
Manufacturer: STMicroelectronics ↗
File Size: 515.25 KB
Datasheet: STLQ015-STMicroelectronics.pdf
Description: ultra low quiescent current linear voltage regulator

Features

* Input voltage from 1.5 to 5.5 V
* Very low quiescent current:
* 1.0 µA (typ. ) at no load
* 1.4 µA (typ. ) at 150 mA load
* 1 nA (typ. ) in OFF mode
* 200 nA max. in OFF mode at 125 °C
* Output voltage tolerance: ± 2% at 25 °C
* 150 mA g

Applications

* requiring very long standby time. The enable logic control function puts the STLQ015 in shutdown mode, reducing total current consumption to 1 nA. The device also includes short-circuit constant-current limiting and thermal protection. Typical applications are: portable and battery-powered systems,
