STLQ020 200mA ultra-low quiescent current LDO

STLQ020 Description

STLQ020 Datasheet 200 mA ultra-low quiescent current LDO DFN6-2x2 Flip-Chip4 S OT323-5L Maturity status link STLQ020 .
The STLQ020 is a 200 mA low-dropout voltage regulator, able to work with an input voltage ranging from 2 V to 5.

STLQ020 Features

* Operating input voltage range: 2 V to 5.5 V
* Output current up to 200 mA
* Ultra-low quiescent current:
* 300 nA typ. at no load
* 100 μA typ. at 200 mA load
* Controlled Iq in dropout conditions
* Very low-dropout voltage: 160 mV at 200 mA

STLQ020 Applications

* Smartphones/tablets
* Image sensors
* Wearable accessories
* Healthcare devices

📥 Download Datasheet

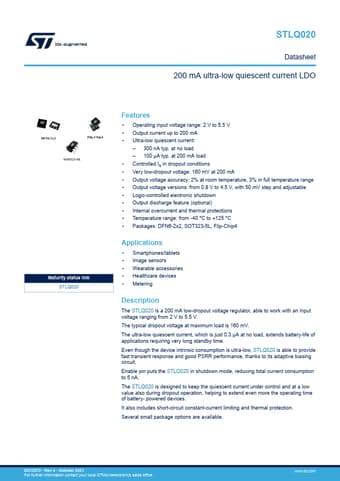

Preview of STLQ020 PDF
datasheet Preview Page 2 datasheet Preview Page 3
