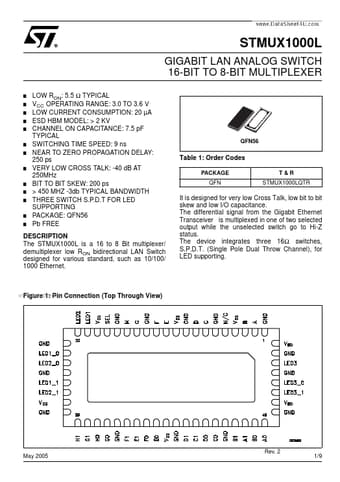

STMUX1000L GIGABIT LAN ANALOG SWITCH 16-BIT TO 8-BIT MULTIPLEXER

The STMUX1000L is a 16 to 8 Bit multiplexer/ demultiplexer low RON bidirectional LAN Switch designed for various standard, such as 10/100/ 1000 Ethernet. It is designed for very low Cross Talk, low bit to bit skew and low I/O capacitance. The differential signal from the Gigabit Ethernet Transceive.

STMUX1000L GIGABIT LAN ANALOG SWITCH 16-BIT TO 8-BIT MULTIPLEXER I I I I I I I I I I I I I LOW RON: 5.5 Ω TYPICAL VCC OPERATING RANGE: 3.0 TO 3.6 V LOW CURRENT CONSUMPTION: 20 µA ESD HBM MODEL: > 2 KV CHANNEL ON CAPACITANCE: 7.5 pF TYPICAL SWITCHING TIME SPEED: 9 ns NEAR TO ZERO PROPAGATION DELAY: 250 ps VERY LOW CROSS TALK: -40 dB AT 250MHz BIT TO BIT SKEW: 200 ps > 450 MHZ -3db TYPICAL BANDWIDTH THREE SWITCH S.P.D.T FOR LED SUPPORTING PACKAGE: QFN56 Pb FREE QFN56 Table 1: Order Codes PA.
