STMUX1800E - 16-bit to 8-bit MUX/DEMUX

STMicroelectronics

The STMUX1800E by STMicroelectronics is a 16-bit to 8-bit MUX/DEMUX. Below is the official datasheet preview.

📥 Download Datasheet

STMUX1800E 16-bit to 8-bit MUX/DEMUX by STMicroelectronics - Datasheet Preview — Official preview page of the **STMUX1800E** 16-bit to 8-bit MUX/DEMUX datasheet (STMicroelectronics).

Datasheet Details

Part number	STMUX1800E
Manufacturer	STMicroelectronics
File Size	329.87 KB
Description	16-bit to 8-bit MUX/DEMUX
Datasheet	STMUX1800E_STMicroelectronics.pdf

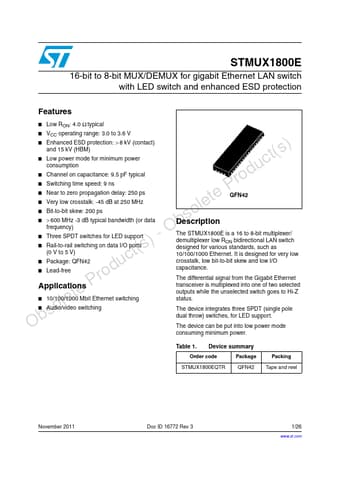

Additional preview pages of the STMUX1800E datasheet.

STMUX1800E Product details

Description

The STMUX1800E is a 16 to 8-bit multiplexer/ demultiplexer low RON bidirectional LAN switch designed for various standards, such as 10/100/1000 Ethernet.

Features

Low RON: 4.0 Ω typical.
VCC operating range: 3.0 to 3.6 V.
Enhanced ESD protection: > 8 kV (contact) ) and 15 kV (HBM) t(s.
Low power mode for minimum power c consumption du.
Channel on capacitance: 9.5 pF typical ro.
Switching time speed: 9 ns P.
Near to zero propagation delay: 250 ps te.
Very low crosstalk: -45 dB at 250 MHz le.
Bit-to-bit skew: 200 ps so.
> 600 MHz -3 dB typical bandwidth (or data b frequency) - O.
Three SPDT switches.
