STMUX7000

7-channel MUX/DEMUX

STMUX7000 Features

* Low RON: 4.0 Ω typical

* VCC operating range: 3.0 to 3.6 V

* Enhanced ESD protection: > 8 kV (contact) and 8 kV (HBM)

* Channel on capacitance: 7.8 pF typical

* Designed for VGA signal switching

* Integrated switches for RGB, HSYNC, VSYNC and DDC signals

* Very low cros

STMUX7000 General Description

The STMUX7000 is a 7-channel multiplexer/demultiplexer low RON bidirectional designed for analog video signal, such as VGA. It is designed for very low crosstalk, and high bandwidth to maintain high signal integrity. The analog video signal multiplexed from one of two selected sources in the noteboo.

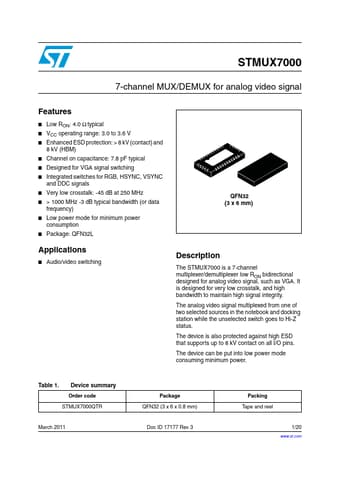

STMUX7000 Datasheet (232.89 KB)

Preview of STMUX7000 PDF

Datasheet Details

Part number:

STMUX7000

Manufacturer:

STMicroelectronics ↗

File Size:

232.89 KB

Description:

7-channel mux/demux.
