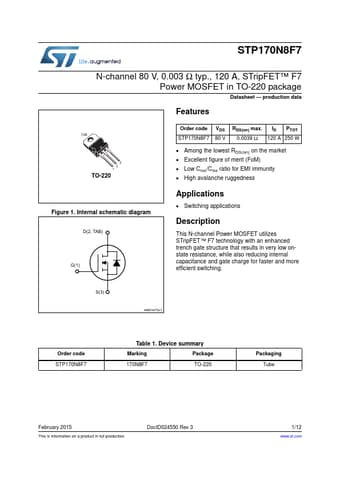

Preview of STP170N8F7 PDF
STP170N8F7 Datasheet Preview Page 2 STP170N8F7 Datasheet Preview Page 3

Datasheet Details

Part number:

STP170N8F7

Manufacturer:

STMicroelectronics ↗

File Size:

744.06 KB

Description:

N-channel power mosfet.

STP170N8F7, N-CHANNEL POWER MOSFET

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

6  $0Y Order code STP170N8F7 Table 1.

Device

STP170N8F7 Features

* TAB 3 2 1 TO-220 Figure 1. Internal schematic diagram ' 7$%

*  Order code VDS RDS(on) max. ID PTOT STP170N8F7 80 V 0.0039 Ω 120 A 250 W

* Among the lowest RDS(on) on the market

* Excellent figure of merit (FoM)

* Low Crss/Ciss ratio for EMI immunity

* High
