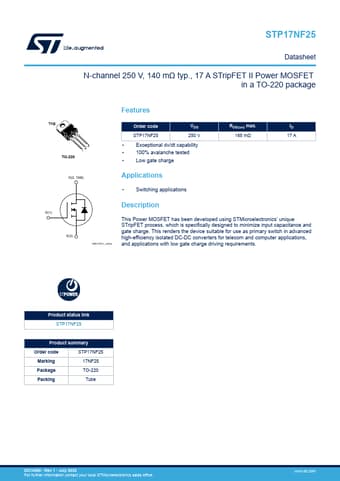

STP17NF25 Datasheet, Mosfet, STMicroelectronics

STP17NF25 Features

• Mosfet TAB TO-220 1 23 Order code VDS RDS(on) max. ID STP17NF25 250 V 165 mΩ 17 A
• Exceptional dv/dt capability
• 100% avalanche tested
• Low gate charge

PDF File Details

Part number:

STP17NF25

Manufacturer:

STMicroelectronics ↗

File Size:

594.70kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. AM01475v1_noZen This Power MOSFET has been developed using STMicroelectronics' unique STripFET process, which is specifically desig

STP17NF25 Application

• Applications
• Switching applications G(1) S(3) Description AM01475v1_noZen This Power MOSFET has been developed using STMicroelectronic
