STP24DP05 - 24-bit constant current LED sink driver

STMicroelectronics

📥 Download Datasheet

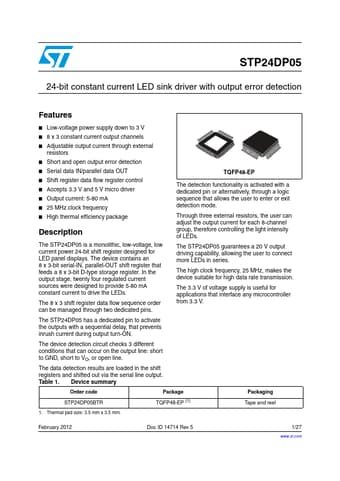

STP24DP05 Datasheet Preview — Preview of STP24DP05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STP24DP05
Manufacturer	STMicroelectronics
File Size	773.70 KB
Description	24-bit constant current LED sink driver
Datasheet	STP24DP05_STMicroelectronics.pdf

STP24DP05 Product details

Description

The STP24DP05 is a monolithic, low-voltage, low current power 24-bit shift register designed for LED panel displays.

Features

Low-voltage power supply down to 3 V.
8 x 3 constant current output channels.
Adjustable output current through external resistors.
Short and open output error detection.
Serial data IN/parallel data OUT.
Shift register data flow register control.
Accepts 3.3 V and 5 V micro driver.
Output current: 5-80 mA.
25 MHz clock frequency.
High thermal efficiency package.
