STP2CMP Low voltage 2-channel constant current LED driver

STP2CMP Description

STP2CMP Low voltage 2-channel constant current LED driver with charge pump Datasheet - production data QFN20 (1.8x3.2 mm) .
The STP2CMP is a charge-pump-based 2channel LED driver designed for RGB illumination or LCD display backlighting.

STP2CMP Features

* Operating voltage range: VCC 2.7 V to 5.5 V
* 2-channel LED driver with individual ON/OFF control directly from input pins
* Individually programmable output current for the 2 channels through 2 external resistors with a max. capability of 30 mA
* Absolute output current accuracy o

📥 Download Datasheet

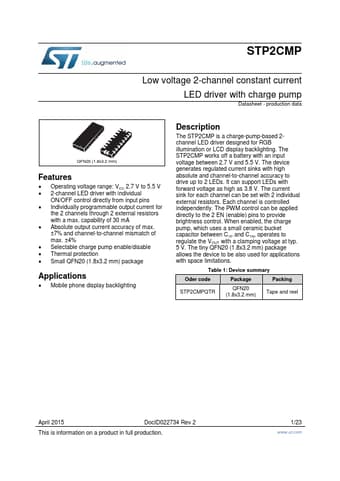

Preview of STP2CMP PDF
datasheet Preview Page 2 datasheet Preview Page 3
