STP36N55M5 - N-CHANNEL POWER MOSFET

Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

  • Order codes STP36N55M5 STW36N55M5 VDSS @ RDS(on) TJmax max ID 600 V < 0.08 Ω 33 A.
  • Worldwide best RDS(on).
  • area.
  • Higher VDSS rating and high dv/dt capability.
  • Excellent switching performance.
  • 100% avalanche tested.

📥 Download Datasheet

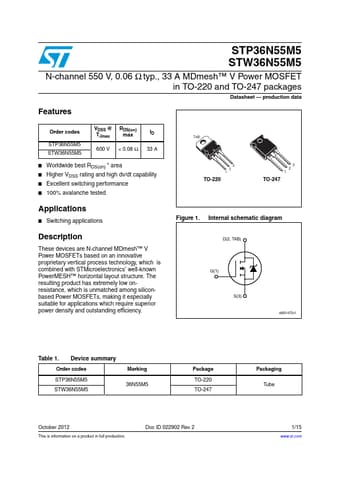

Datasheet preview – STP36N55M5
