STP4NK60Z

N-CHANNEL Power MOSFET

STP4NK60Z Features

* TAB 3 2 1 TO-220 3 2 1 TO-220FP Order codes VDS RDS(on) max. PTOT STP4NK60Z 600 V 2 Ω 70 W STP4NK60ZFP

* 100% avalanche tested

* Very low intrinsic capacitances

* Zener-protected ID 4A Figure 1. Internal schematic diagram D(2, TAB) G(1) Applications

* Switching

STP4NK60Z General Description

These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well established strip-based PowerMESH™ layout. In addition to a significant reduction in onresistance, this device is designed to ensure a high .

STP4NK60Z Datasheet (349.31 KB)

Preview of STP4NK60Z PDF

Datasheet Details

Part number:

STP4NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

349.31 KB

Description:

N-channel power mosfet.

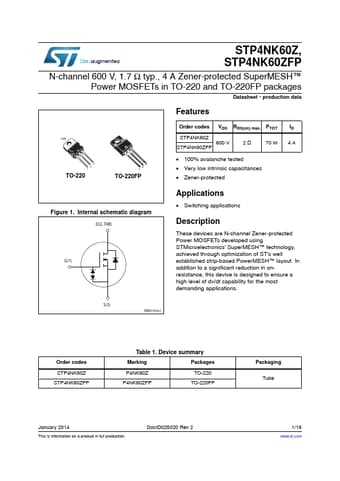

STP4NK60Z, STP4NK60ZFP N-channel 600 V, 1.7 Ω typ., 4 A Zener-protected SuperMESH™ Power MOSFETs in TO-220 and TO-220FP packages Datasheet - productio.
