STP4NK80Z N-channel Power MOSFET

STMicroelectronics

Description

STP4NK80Z - STP4NK80ZFP STD4NK80Z - STD4NK80Z-1 N-channel 800V - 3Ω - 3A - TO-220/TO-220FP/DPAK/IPAK Zener - Protected SuperMESH™ MOSFET General feat.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

📥 Download Datasheet

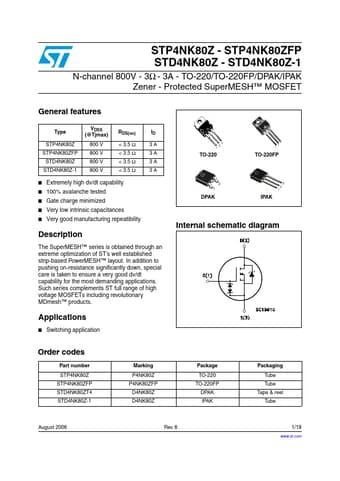

STP4NK80Z Datasheet Preview — Preview of STP4NK80Z PDF

Datasheet Specifications

Part number: STP4NK80Z
Manufacturer: STMicroelectronics ↗
File Size: 522.36 KB
Datasheet: STP4NK80Z-STMicroelectronics.pdf
Description: N-channel Power MOSFET

Features

* Type STP4NK80Z STP4NK80ZFP STD4NK80Z STD4NK80Z-1 VDSS (@Tjmax) 800 V 800 V 800 V 800 V RDS(on) < 3.5 Ω < 3.5 Ω < 3.5 Ω < 3.5 Ω ID 3A 3A 3A 3A
* Extremely high dv/dt capability
* 100% avalanche tested
* Gate charge minimized
* Very low intrinsic capacitances
* Very good manuf

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
* Switching application TO-220 3 2 1 TO-220FP 3 1 DPAK IPAK 3 2 1 Internal schematic diagram Order codes Part number STP4NK80Z STP4NK80ZFP STD4NK80ZT4 STD4NK80Z-1 Markin
