STP4NK60ZFP, STP4NK60Z - N-CHANNEL Power MOSFET

Name: STP4NK60ZFP
SKU: STP4NK60ZFP-628172

STMicroelectronics

📥 Download Datasheet

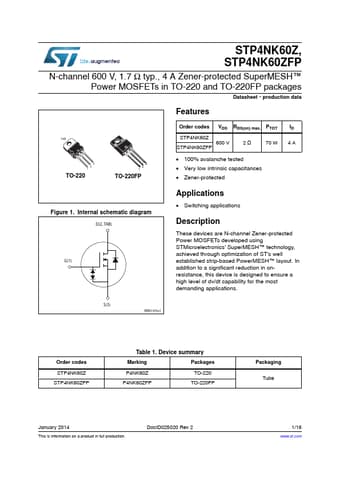

STP4NK60ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP4NK60ZFP, STP4NK60Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STP4NK60ZFP, STP4NK60Z
Manufacturer	STMicroelectronics
File Size	349.31 KB
Description	N-CHANNEL Power MOSFET
Datasheet	STP4NK60Z_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STP4NK60ZFP, STP4NK60Z. Please refer to the document for exact specifications by model.

STP4NK60ZFP Product details

Description

These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well established strip-based PowerMESH™ layout.

Features

TAB 3 2 1 TO-220 3 2 1 TO-220FP Order codes VDS RDS(on) max. PTOT STP4NK60Z 600 V 2 Ω 70 W STP4NK60ZFP.
100% avalanche tested.
Very low intrinsic capacitances.
Zener-protected ID 4A Figure 1. Internal schematic diagram D(2, TAB) G(1).
