STP7N95K3 - Power MOSFET

STMicroelectronics

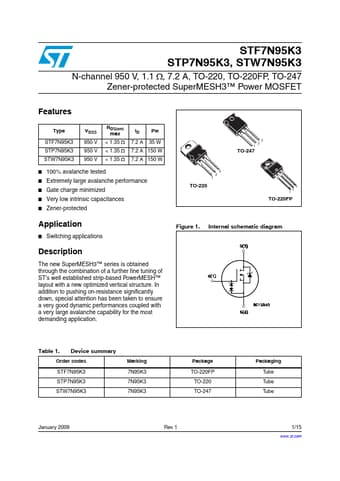

STP7N95K3 Datasheet Preview — Preview of STP7N95K3 PDF

Datasheet Details

Part number	STP7N95K3
Manufacturer	STMicroelectronics ↗
File Size	937.64 KB
Description	Power MOSFET
Datasheet	STP7N95K3_STMicroelectronics.pdf

STP7N95K3 Product details

Description

The new SuperMESH3™ series is obtained through the combination of a further fine tuning of ST's well established strip-based PowerMESH™ layout with a new optimized vertical structure.

Features

Type STF7N95K3 STP7N95K3 STW7N95K3 VDSS 950 V 950 V 950 V RDS(on) max < 1.35 Ω < 1.35 Ω < 1.35 Ω ID Pw 7.2 A 35 W 7.2 A 150 W 7.2 A 150 W.
100% avalanche tested.
Extremely large avalanche performance.
Gate charge minimized.
Very low intrinsic capacitances.
Zener-protected.
