STP7N52K3

N-channel Power MOSFET

STMicroelectronics

STP7N52K3 Features

* Type STB7N52K3 STD7N52K3 STF7N52K3 STP7N52K3 VDSS 525 V 525 V 525 V 525 V RDS(on) max < 0.98 Ω < 0.98 Ω < 0.98 Ω ID 6.3 A 6.3 A 6.3 A Pw 3 3 90 W 90 W 25 W 90 W 1 1 D²PAK DPAK < 0.98 Ω 6.3 A(1) 1. Limited by package

* 100% avalanche tested Extremely high dv/

STP7N52K3 General Description

The new SuperMESH3™ series is obtained through the combination of a further fine tuning of ST's well established strip-based PowerMESH™ layout with a new optimization of the vertical structure. In addition to reducing on-resistance significantly versus previous generation, special attention has been.

STP7N52K3 Datasheet (552.84 KB)

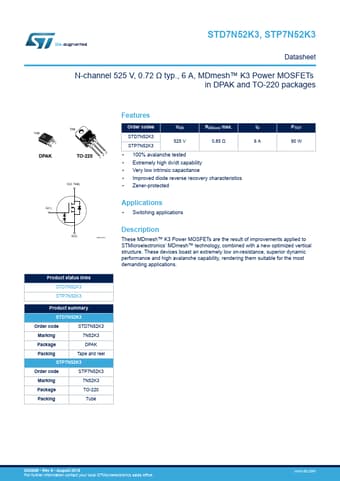

STP7N52K3 Datasheet Preview — Preview of STP7N52K3 PDF

Datasheet Details

Part number:

STP7N52K3

Manufacturer:

STMicroelectronics ↗

File Size:

552.84 KB

Description:

N-channel power mosfet.
STB7N52K3 - STD7N52K3 STF7N52K3 - STP7N52K3 N-channel 525 V, 0.84 Ω, 6.3 A, D2PAK, DPAK, TO-220FP, TO-220 SuperMESH3™ Power MOSFET Preliminary Data F.
