STP7N52DK3 - Power MOSFETs

ST Microelectronics

STP7N52DK3 Datasheet Preview — Preview of STP7N52DK3 PDF

Datasheet Details

Part number	STP7N52DK3
Manufacturer	STMicroelectronics ↗
File Size	564.26 KB
Description	Power MOSFETs
Datasheet	STP7N52DK3_STMicroelectronics.pdf

STP7N52DK3 Product details

Description

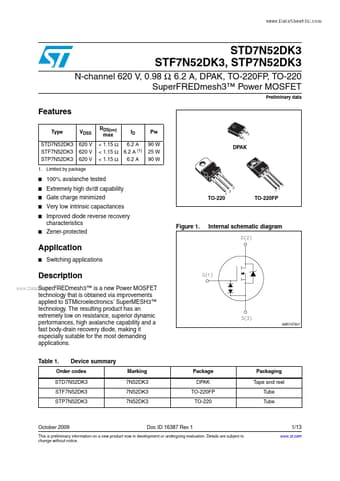

SuperFREDmesh3™ www.DataSheet4U.com is a new Power MOSFET technology that is obtained via improvements applied to STMicroelectronics’ SuperMESH3™ technology.

Features

Type STD7N52DK3 STF7N52DK3 STP7N52DK3 VDSS 620 V 620 V 620 V RDS(on) max < 1.15 Ω < 1.15 Ω < 1.15 Ω ID 6.2 A 6.2 A (1) 6.2 A Pw 1 3 90 W 25 W 90 W DPAK 1. Limited by package.
100% avalanche tested Extremely high dv/dt capability Gate charge minimized Very low intrinsic capacitances Improved diode reverse recovery characteristics Zener-protected D(2) 1 3 2 3 1 2 TO-220 TO-220FP Figure 1. Internal schematic diagram.
